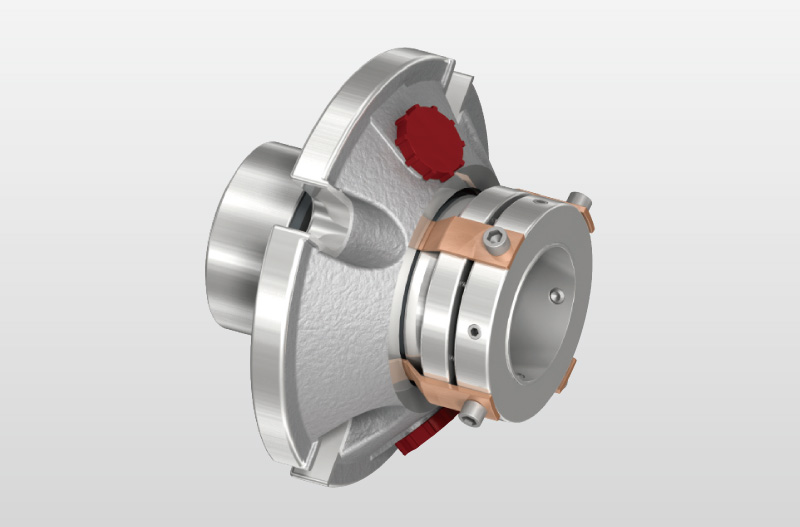

Технические параметры:
Давление: < 2.1Мпа(диаметр вала <75mm)
< 1.3Мпа(диаметр вала>75mm)
Ско¬рость: ≤ 25м/с
Температура: -30˚C ~ +205˚C
● Подвижное кольцо(карбид кремния/углеграфит/карбид вольфрама)
● Неподвижное кольцо(карбид кремния/карбид вольфрама)
● Вспомогательное уплотнение(фторкаучук/обшивной круг/тефлон)
● Другие детали (нержавеющая сталь/титан/Hastelloy-C)
| d | d26 | l4 | l5 | l3 | d1 | n | m | l1 | l2 | ||
| (mm) | min | max | min | max | max | ||||||
| 24 | 104.8 | 54.0 | 49.2 | 13.2 | 40.0 | 46.0 | 67.0 | 90.5 | 12.0 | 32.5 | 52.4 |
| 25 | 104.8 | 54.0 | 49.2 | 13.2 | 41.0 | 49.0 | 67.0 | 90.5 | 12.0 | 32.5 | 52.4 |
| 28 | 108.0 | 57.2 | 52.4 | 13.2 | 44.0 | 52.3 | 70.3 | 93.6 | 12.0 | 32.5 | 52.4 |
| 30 | 111.0 | 60.4 | 55.6 | 13.2 | 46.0 | 55.5 | 73.5 | 96.8 | 12.0 | 32.5 | 52.4 |
| 32 | 111.0 | 60.4 | 55.6 | 13.2 | 48.0 | 55.5 | 73.5 | 96.8 | 12.0 | 32.5 | 52.4 |
| 33 | 111.0 | 60.4 | 55.6 | 13.2 | 49.0 | 55.5 | 73.5 | 96.8 | 12.0 | 32.5 | 52.4 |
| 35 | 111.0 | 63.5 | 58.8 | 13.2 | 51.0 | 57.5 | 76.6 | 96.8 | 12.0 | 32.5 | 52.4 |
| 38 | 127.0 | 71.5 | 65.0 | 16.4 | 57.2 | 60.3 | 85.7 | 114.3 | 12.0 | 33.3 | 54.0 |
| 40 | 127.0 | 71.5 | 65.0 | 16.4 | 58.0 | 60.4 | 85.7 | 114.3 | 12.0 | 33.3 | 54.0 |
| 43 | 127.0 | 71.5 | 65.0 | 16.4 | 61.0 | 63.5 | 85.7 | 114.3 | 12.0 | 33.3 | 54.0 |
| 45 | 139.7 | 81.0 | 71.4 | 16.4 | 63.5 | 69.9 | 95.3 | 127.0 | 12.0 | 33.3 | 54.0 |
| 48 | 139.7 | 81.0 | 71.4 | 16.4 | 66.7 | 73.0 | 95.3 | 127.0 | 12.0 | 33.3 | 54.0 |
| 50 | 139.7 | 81.0 | 71.4 | 16.4 | 68.0 | 73.0 | 95.3 | 127.0 | 12.0 | 33.3 | 54.0 |
| 53 | 152.4 | 90.5 | 77.8 | 16.4 | 71.0 | 76.2 | 104.8 | 139.7 | 12.0 | 35.0 | 54.0 |
| 55 | 152.4 | 90.5 | 77.8 | 16.4 | 74.0 | 79.4 | 104.8 | 139.7 | 12.0 | 35.0 | 54.0 |
| 58 | 165.1 | 96.8 | 84.1 | 16.4 | 76.2 | 82.5 | 114.3 | 149.2 | 16.0 | 35.0 | 54.0 |
| 60 | 165.1 | 96.8 | 84.1 | 16.4 | 79.4 | 85.7 | 114.3 | 149.2 | 16.0 | 35.0 | 54.0 |
| 63 | 177.8 | 109.5 | 96.8 | 19.6 | 85.8 | 92.1 | 127.0 | 160.3 | 16.0 | 38.1 | 60.3 |
| 65 | 177.8 | 109.5 | 96.8 | 19.6 | 88.9 | 95.3 | 127.0 | 160.3 | 16.0 | 38.1 | 60.3 |
| 68 | 177.8 | 109.5 | 96.8 | 19.6 | 92.1 | 98.4 | 127.0 | 160.3 | 16.0 | 38.1 | 60.3 |
| 70 | 177.8 | 109.5 | 96.8 | 19.6 | 92.1 | 98.4 | 127.0 | 160.3 | 16.0 | 38.1 | 60.3 |
| 75 | 190.5 | 125.4 | 108.0 | 19.6 | 98.5 | 108.0 | 142.9 | 173.0 | 16.0 | 38.1 | 60.3 |
| 80 | 190.5 | 125.4 | 108.0 | 19.6 | 101.6 | 111.1 | 142.9 | 173.0 | 16.0 | 38.1 | 60.3 |
| 85 | 203.2 | 135.0 | 117.5 | 19.6 | 108.0 | 117.5 | 155.6 | 182.5 | 20.0 | 38.1 | 60.3 |
| 90 | 215.9 | 150.8 | 127.0 | 19.6 | 114.3 | 127.0 | 171.5 | 195.2 | 20.0 | 38.1 | 60.3 |
| 95 | 215.9 | 150.8 | 127.0 | 19.6 | 117.5 | 130.2 | 171.5 | 195.2 | 20.0 | 38.1 | 60.3 |
| 100 | 228.6 | 168.3 | 136.5 | 19.6 | 123.9 | 139.7 | 189.0 | 208.0 | 20.0 | 38.1 | 60.3 |
| 105 | 228.6 | 168.3 | 136.5 | 19.6 | 130.1 | 149.2 | 189.0 | 208.0 | 20.0 | 38.1 | 60.3 |
| 110 | 241.3 | 177.8 | 146.2 | 19.6 | 136.5 | 158.8 | 198.4 | 220.6 | 20.0 | 38.1 | 60.3 |
| 115 | 254.0 | 186.6 | 155.8 | 19.6 | 142.9 | 168.3 | 211.1 | 230.2 | 22.0 | 38.1 | 60.3 |
| 120 | 254.0 | 186.6 | 155.8 | 19.6 | 142.9 | 168.3 | 211.1 | 230.2 | 22.0 | 38.1 | 60.3 |
| 125 | 254.0 | 186.6 | 155.8 | 19.6 | 149.2 | 168.3 | 211.1 | 230.2 | 22.0 | 38.1 | 60.3 |
